Theory

Overview

More as a reminder and complementary to the README.rst, we are quickly going over the main goals and concepts used in this package.

SLMs

Spatial Light Modulators (SLMs) are devices that modulate properties of light, either its amplitude, phase or polarization in space or time and can be reflective or transmissive. Here an example of a SLM we support (via slm-controller) in this project, the Holoeye LC 2012.

Image Credit 1

It’s a transmissive SLM and allows to modulate both amplitude and phase. Commonly SLMs, and also the Holoeye one, are based on Liquid Crystal Display (LCD) technology. Briefly, the SLM consists of a grid of crystal cells where each of them can be programmatically addressed and by applying different voltages its physical properties are changed. Concretely, for the Holoeye SLM Twisted Nematic (TN) cells are used. Here two image that sum this up:

Image Credit 1

This picture shows such a TN cell when no voltage is applied. The polarization of the light follows the crystal molecules and is hence rotated by \(90°\).

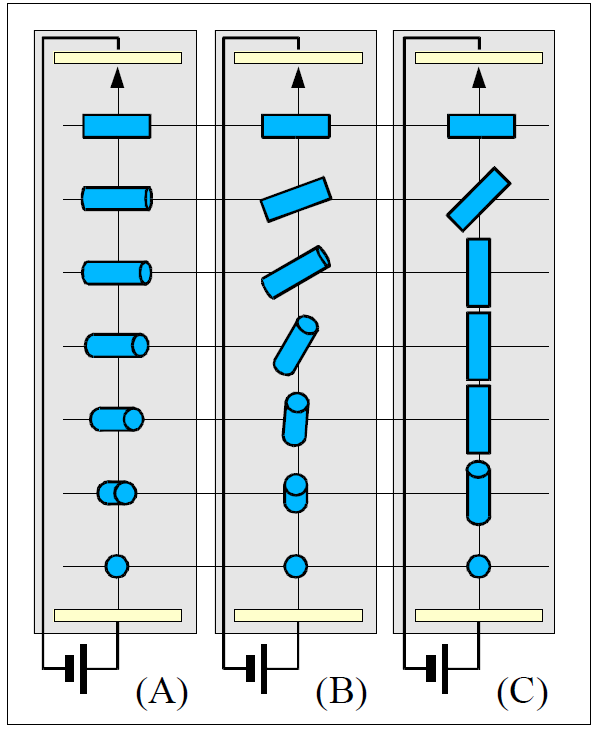

Image Credit 1

When a voltage is applied the twist in the helix is altered leading to different properties. More precisely, \(V_A = 0\) with twisted, but untilted molecules, \(V_B > V_{thr}\) with tilted, partially aligned molecules, \(V_C \gg V_{thr}\) with aligned molecules in the central region of the cell.

By modulating the polarization and combining the SLM with a polarizer and an analyzer both amplitude and phase modulation can be achieved.

SLMs generally have different fields of application like, for example, Lensless Imaging but in this project the focus lies on Computer Generated Holography (CGH). In this domain the goals is to produce interesting interference patterns of light waves, like images etc. Generally, it’s a hard problem to prepare such holographic light waves that then can be transported to an observer leading to the expected output. Nonetheless, it can be done using fixed masks but it’s way more interesting to use SLMs for this task, being programmatically changeable. Next, we are going to focus on how to prepare such holographic light waves using SLMs to modulate the lights phase, more precisely on how to compute the mask that needs to be put on those devices. This problem is commonly called phase retrieval.

Phase retrieval

This package is intended to provide different approaches to the inverse problem called phase retrieval, i.e. mask design for phase SLMs. So concretely, those algorithms aim to compute a phase mask that can be set on a SLM such that a given target image is appearing on the screen ofter propagation of the light waves. For example, we want to get this target amplitude.

Image Credit 2

Any of those algorithms then computes the corresponding phase map.

And finally, this phase mask can be sent to a SLM and propagated to the target plane where one can observe the resulting image.

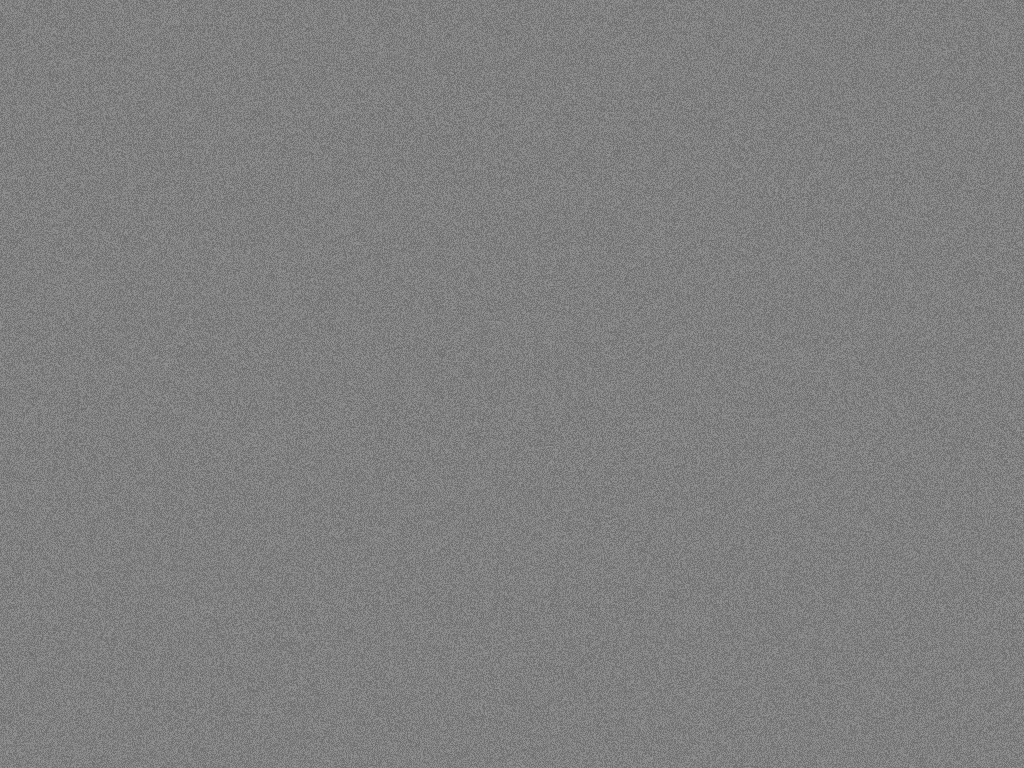

Above results were computed using the Holoeye software. But when using SGD from Neural Holography for example one can observe the incremental progress of the optimization. Here an example of how the phase mask evolves for a lensless setting in \(200\) iterations.

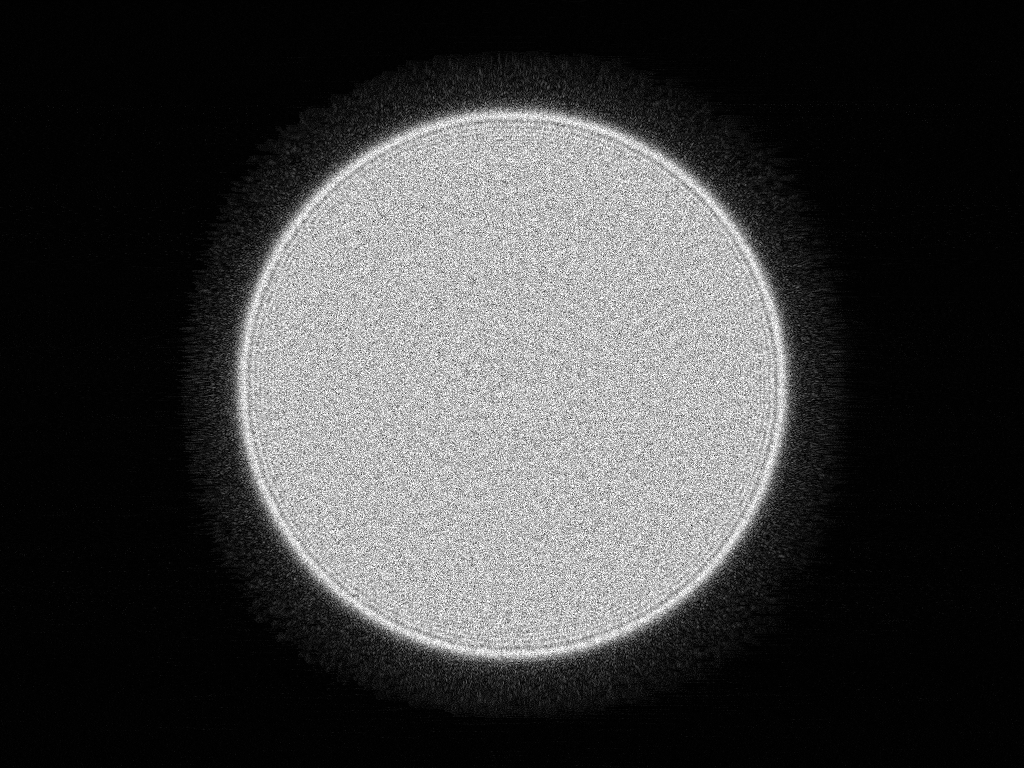

And here the corresponding simulated resulting amplitude pattern at the target plane.

Note the difference to a setting with a lens.

To interact and control such SLM devices this package depends on a different package slm-controller which is developed jointly with this package.

For most of these phase retrieval algorithms light propagation simulation plays an essential role. That is, simulating light waves with given phase values propagating to the target plane and predicting the resulting amplitudes. For now those simulations are not performed with our in house package waveprop but it is our goal to use it throughout the code.

The mask-designer includes more features but mask designing is the main problem it tackles. The different strategies are more or less directly imported from GitHub. As shown in the paper that goes with the repository, a Camera-In-The-Loop (CITL) approach leads to the best results. This technique includes capturing images of the resulting amplitudes at the target plane and using this information to improve the phase map iteratively. But these approaches are explained in more depth in the Neural Holography section. For CITL though, interaction with a camera is needed which this package provides an interface for.

Overall the following schematic shows the interactions between the different software and hardware modules that normal use cases would produce.

The interactions marked with CITL are only necessary for the CITL approach. More details are given in the Typical interactions between software and hardware section.

Holoeye SLM Pattern Generator

Holoeye does also provide a piece of software called SLM Pattern Generator which amongst others has a feature that does perform phase retrieval for a given target amplitude. One such example can be found in images/holoeye_phase_mask and its corresponding amplitude at the target plane under images/target_amplitude.

This code is unfortunately not open-source but they claim to use an Iterative Fourier Transform Algorithm (IFTA) summed up in the following diagram.

Image Credit 3

The Discrete Fourier Transform (DFT) here does perform propagation simulation in the Fraunhofer sense. All in all, the IFTA is probably the easiest approach to phase retrieval, iteratively enforcing constraints (as being close to the target amplitude on the target plane) and propagating back and forth (i.e. simulating the wave propagation). Neural Holography does implement the Gerchberg-Saxton algorithm which is basically the same.

Neural Holography

The authors of Neural Holography (paper & repository) provide implementations to different phase retrieval approaches. Here a list of the methods that were slightly modified and hence are now compatible with the remainder of the project:

1. Gerchberg-Saxton (GS)

2. Stochastic Gradient Descent (SGD)

3. Camera-In-The-Loop (CITL)

1. Gerchberg-Saxton (GS)

As mentioned earlier, this is basically the IFTA. Light is iteratively propagated back and forth and constraints are enforced at both ends, like being close to the target amplitude at the target plane.

2. Stochastic Gradient Descent (SGD)

Similar to before, the phase mask is iteratively optimized such that the resulting amplitude after propagation is closer and closer to the target amplitude. Note that this methods requires the light propagation to be differentiable. Additionally, this method uses a region of interest (ROI) in which errors are more penalized than on the outside of this region. So typically you want the result to be close to the target in the center but give the algorithm some slack in the border regions. This simplifies the optimization task as you do not force the algorithm to optimize regions which you do not care about. Generally speaking, you require fewer iterations and hence get some speedup.

3. Camera-In-The-Loop (CITL)

CITL adds physical propagation and the measurement of those results into the game. The idea is to replace the simulated results of the SGD by real measurement of the resulting amplitudes on the target plane using a camera and finally using those to compute the loss and update the phase mask. It is useful wo “warm start” the process by first computing a phase mask with the SGD and then using the CITL to improve the latter even further. Note that this method is technically the most challenging one. But as shown in the Neural Holography paper it performs better than all the other methods.

Typical interactions between software and hardware

The following gif-files illustrate the interactions between software and hardware components that arise normally in typical use cases.

Set a mask using slm-controller

Perform phase retrieval (without CITL)

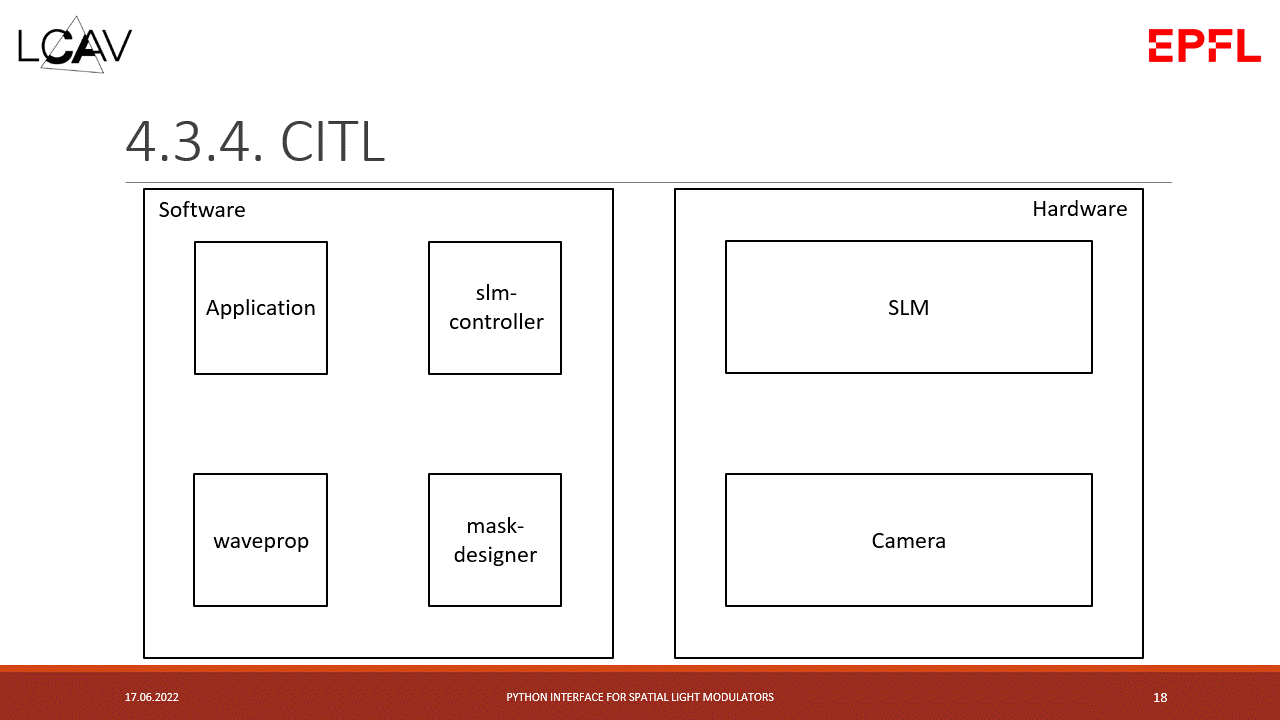

Perform phase retrieval using CITL

Perform phase retrieval using CITL and waveprop for simulation

Propagation

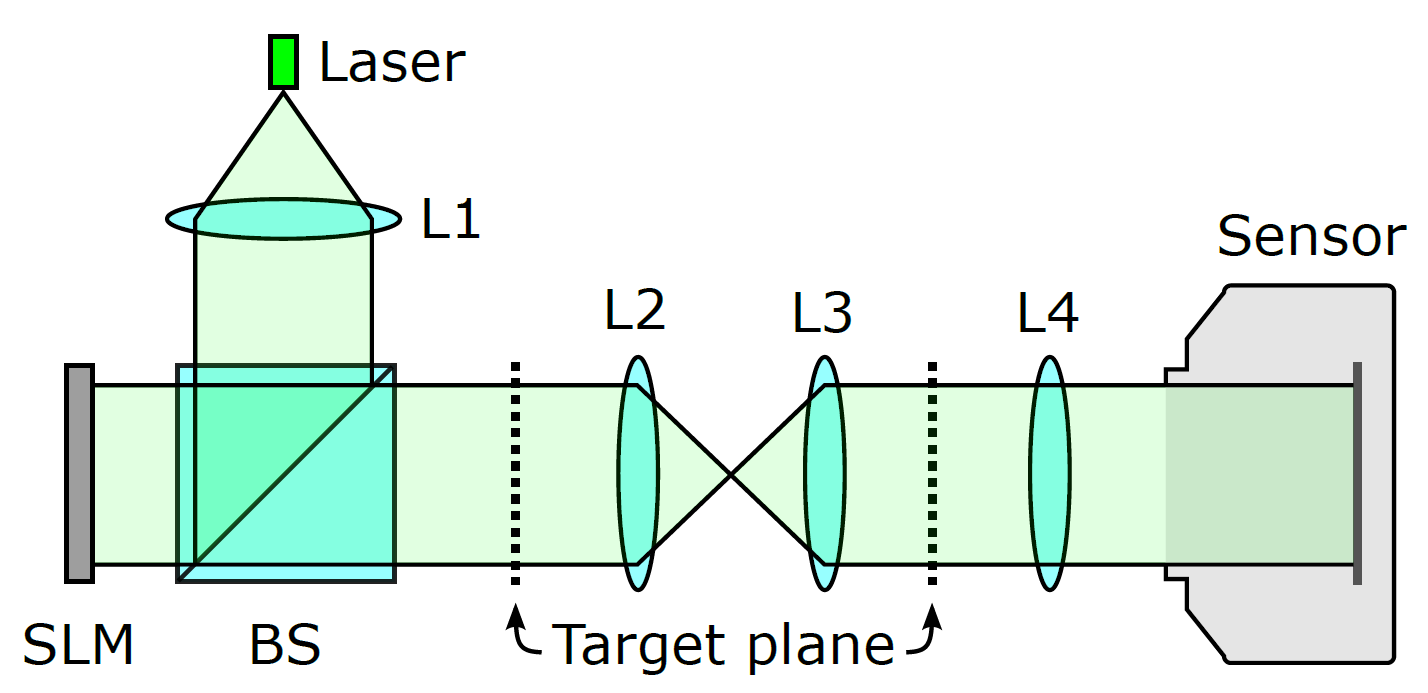

Following Holoeye’s manual, those setup all include one convex lens. Neural Holography on the other hand, uses a different setting where no lens is placed between the SLM and the target plane, i.e. a lensless setting (at least in the first part of their optical configuration).

Image Credit 4

A convex lens is physically performing a Fourier transform, hence those settings are not compatible with each other, meaning that a phase mask computed using Neural Holography code won’t result in the desired amplitudes on the photo sensor and vice versa for the same target amplitude.

Hence, our physical setup does perform propagation in the Fraunhofer sense, where the propagation basically boils down to applying a Fourier transform. This fact was confirmed by simulating propagation using Fraunhofer of phase maps generated by Holoeye software and comparing the results to physical observations with our experimental setup (including one convex lens).

Additionally, Neural Holography uses a different propagation method, namely Angular spectrum method (ASM). To summarize, we have those differences in propagation:

Thus for the same target amplitude we obtain different phase maps where the difference is not explained with numerical variations.

Mathematically, we have that

\[\begin{split}\begin{align} A &\approx (FT \circ S)(\phi_H) := p_H(\phi_H) \\ A &\approx (IS \circ FT \circ S \circ M \circ IFT \circ S)(\phi_N) := p_N(\phi_N) \\ \end{align}\end{split}\]

but \(\phi_H \neq \phi_N\) and where

• \(A\) is the amplitude at the target plane of the propagated light,

• \(\approx\) expresses the fact that those methods results in the “same” amplitudes up to some numerical errors,

• \(\phi_H\) is the phase mask computed using Holoeye software,

• \(\phi_N\) is the phase mask computed using Neural Holography code,

• \(FT\) is a regular Fourier transform,

• \(IFT\) its inverse transform,

• \(S\) simply shifts i.e. rotates part of the Tensors,

• \(IS\) does the inverse shift and

• \(M\) is a matrix multiplication by the homography matrix \(H\) computed internally.

In order to be able to use the Neural Holography code (same goes the other way around) we need to be able to transform the phase maps. We get

\[\begin{split}\begin{align} \phi_N&=(IS \circ FT \circ S \circ M \circ IFT \circ IFT)(\phi_H) := t_{H \rightarrow N}(\phi_H) \\ \phi_H&=(FT \circ FT \circ S \circ M^{-1} \circ IFT \circ S)(\phi_N) := t_{N\rightarrow H}(\phi_H) \\ \end{align}\end{split}\]

and hence we have that

\[\begin{split}\begin{align} A &\approx p_H(\phi_H)=(p_H \circ t_{N\rightarrow H})(\phi_N) \\ A &\approx p_N(\phi_N)=(p_N \circ t_{H\rightarrow N})(\phi_H) \\ \end{align}\end{split}\]

as desired. In diagrammatic form we have the following situation:

Both these transformations are implemented in mask_designer/transform_fields.py.
